Product Description
20KW Solar Roof System - Efficient, Reliable, and Sustainable
Power your home or business with the ultimate in renewable energy
solutions: the 20KW Solar Roof System. Designed for maximum
efficiency and built to withstand harsh weather conditions, this
solar system combines cutting-edge technology with sleek,
low-profile panels that seamlessly integrate with your roofline.
Off-Grid Solar Roof System: Designed for remote locations or anyone
looking to live independently from the power grid, this system
combines high-efficiency solar panels with robust battery storage
to ensure uninterrupted power, day and night.
Key Features
High-Output Solar Panels: Generate up to 20KW of clean, renewable
energy, providing reliable power for homes, cabins, or small
commercial setups.
Advanced Battery Storage: Equipped with high-capacity lithium
battery banks, this system stores excess energy generated during
the day for use at night or during cloudy periods, ensuring
continuous power supply.
Inverter/Charger Combo: An integrated inverter/charger unit
converts solar energy into usable electricity and manages battery
charging, maximizing efficiency and reliability.
Rugged and Weatherproof: Built to withstand extreme temperatures,
high winds, and heavy snow, making it ideal for off-grid locations.
Complete Energy Independence: Free yourself from utility bills and
grid blackouts by generating and storing your own power.
Ideal for Remote Locations: Perfect for properties in isolated
areas where traditional grid access is limited or unavailable.
Product Parameters

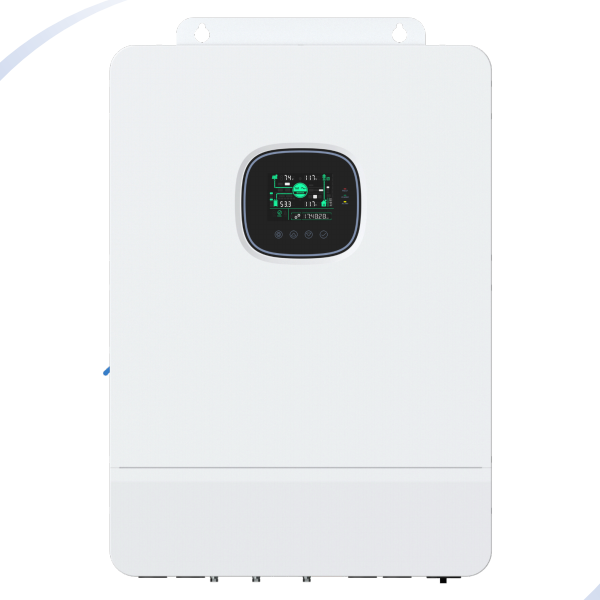

10KW off-grid solar inverter Model:SPI-10K-SP Quantity: 2 pcs Rated Output Voltage:230Vac, single-phase Rated AC Frequency:50/60Hz Num. of MPPT Trackers:2 Max. Voltage of Open Circuit:500Vdc+500Vdc Dimensions:620*445*130mm Weight:27kg Embedded Interfaces:RS485 / CAN / USB / Dry contact
|  |
 | LiFePo4 battery Battery Voltage:48V,51.2V Battery Capacity:Customization (customized according to the needs of different
users)
|
Mono Solar Panel Maximum Power (Pm):580W Quantity:36pcs Junction Box:IP68 Connector:MC4 Compatible Maximum System Voltage:DC1500V (IEC) Maximum Series Fuse Rating:25A Operating Temperature:-40℃～+85℃ Application Rating:Class A External Dimension (L×W×H):2278×1134×30mm |  |
 | ACCESSORIES 1.AC Cable 2.DC Switches 3.AC Breaker 4.AC/DC Combine box 5.PV Cable 4mm2 6mm2 |
1.Customized for roof&ground etc. 2.Adjustable angle from 0~65 degree
3.Compatible with all type solar panel 4.All aluminum structure solar mounting system |  |
