IEC Three Phase Hybrid Solar Inverter IP65 Waterproof Srne On-Grid And Off-Grid

Ask Lasest Price
Brand Name :	YUNFAN
Model Number :	HESP4850S100-H
Certification :	CE,RHSH,IEC
Price :	$1350pieces
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	200000Piece/Pieces/Month
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

IEC Three Phase Hybrid Solar Inverter IP65 Waterproof Srne On-Grid And Off-Grid

Factory Srne On-Grid And Off-Grid 5kw Ip65 Waterproof Hybrid Solar Inverter With 5 Years Warranty

Efficient • Advanced MPPT technologty with up to 99.9% efficiency • Up to 22A PV input current perfect for high power	Reliable • Outputs high quality pure sine wave AC power • 8-10kW load power to meet the needs of most
User-friendly • Industrial design with a modern aesthetic look • Easy to install and simple to use	Safety • 360 degrees of security from hardware to software • EU and North American safety approvals
All-in-one • Solar Charger Controller up to 100A charging current • Support for Li-ion battery BMS communication	Intelligent • Exclusive Li-ion battery BMS dual activation • Time-slot function to save cost with peak-valley tariff

Specification

MODEL	HESP4840S100-H	HESP4846S100-H	HESP4850S100-H HESP4855S100-H	HESP4860S100-H
OFF-GRID OUTPUT
Rated Output Power	4,000W	4,600W	5,500W	6,000W
Peak Power	8,000VA	9,200VA	11,000VA	12,000VA
Rated Output Voltage	230Vac (200/208/220/240Vac settable)
Load Capacity of Motors	3HP	4HP
Rated Frequency	50/60Hz
Switch Time	10ms(typical)
ON-GRID OUTPUT
Rated Output Power	4,000W	4,600W	5,500W	6,000W
Max. Apparent Power	4,000VA	4,600VA	5,500VA	6,000VA
Max. Output Current	17.4A	20A	24A	26A
THDI	< 3%
Power Factor	0.8 leading to 0.8 lagging
Rated Voltage	230Vac
Frequency	50Hz/60Hz
BATTERY
Battery Type	Lead-acid / Li-ion / User Defined
Rated Battery Input Voltage	48V(minimum starting voltage 44V)
Battery Voltage Range	40～60Vdc
Max. PV Charging Current	100A
Max.Mains/Generator Charging Current	60A
PV INPUT
Num. of MPPT Trackers	2
Max.PV Array Power	3,000W+3,000W	3,500W+3,500W	4,000W+4,000W	4,500W+4,500W
Max.Input Current	16A+16A
Max.Voltage of Open Circuit	500Vdc+500Vdc
MPPT Voltage Range	120~450Vdc
MAINS/GENERATOR INPUT
Input Voltage Range	UPS mode:170～280Vac；APL mode:90～280Vac
Input Frequency Range	50/60Hz
Bypass Overload Current	40A
EFFICIENCY
MPPT Tracking Efficiency	99.9%
Max. Mains Charging Efficiency	92%
GENERAL
Num. of Parallel	1~6 units
Dimensions	556345182mm (1.821.130.60ft)
Weight	20kg(44.1lb)
Protection Degree	IP65
Operating Temperature Range	-25~60℃ (-13°F~140°F)
Noise	≤60dB
Humidity range	0% ~ 100%
Cooling Method	Forced air cooling, variable speed of fan
Warranty	5 years
COMMUNICATION
Embedded Interfaces	RS485 / CAN / USB / Dry contact
External Modules(Optional)	Wi-Fi / GPRS
CERTIFICATION
Safety	CE(IEC 62109-1/2),CEI0-21,VDE-AR-N-4105,EN50549-1
EMC	EN61000,FCC-SODC

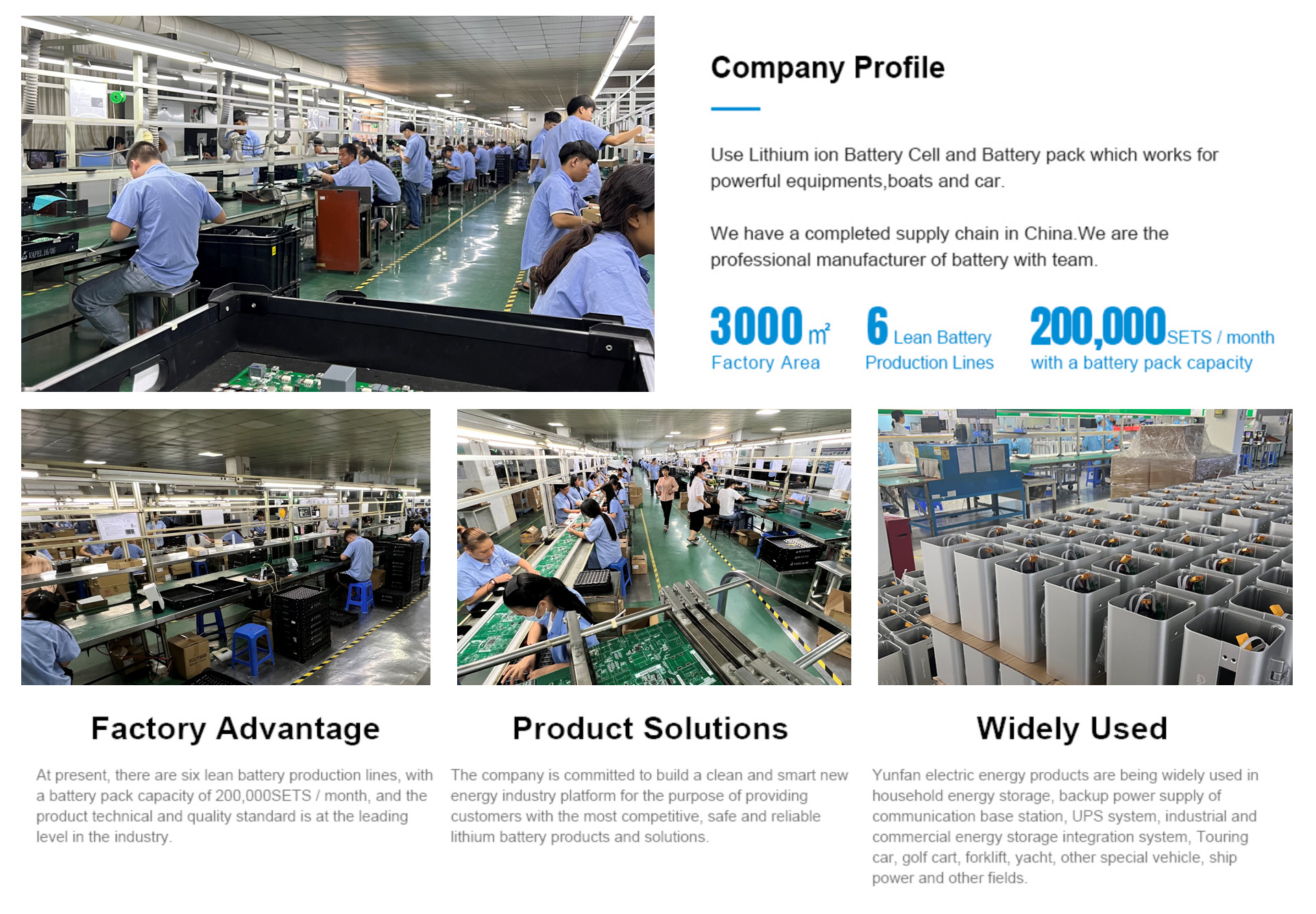

Company Profile

13years of battery production experience safe and reliable
Based in China, we have over 13 years of experience in design, R&D and production in the field of energy storage batteries. With over 60 designers and battery engineers, we are able to provide the most advanced energy storage solutions to meet different energy storage needs for our customers.
The energy storage system products we design and produce not only reduce customers’ electricity bills, but also ensure the stability of power supply under extreme weather conditions. They are easy to install, with superior performance and high cost performance, which makes them an ideal home energy storage solution.
